We constructed a 120kW twin hydro turbine, on a small weir at Linton Falls on the River Wharf within the Yorkshire Dales National Park, bringing the asset back to life for the first time since 1948.

Low Wood Hydro

Low Wood Hydro

We installed two new Archimedean screw turbines as part of the refurbishment of the hydroelectric plant at the historic Low Wood Gunpowder Works within the scenic Lake District National Park.

Tees Barrage

Tees Barrage

We redeveloped this white water course to create a world-class training facility used in the 2012 Olympic Games. The project, at the time, was the only installation where Archimedean screws were used as both pumps and generators.

About us

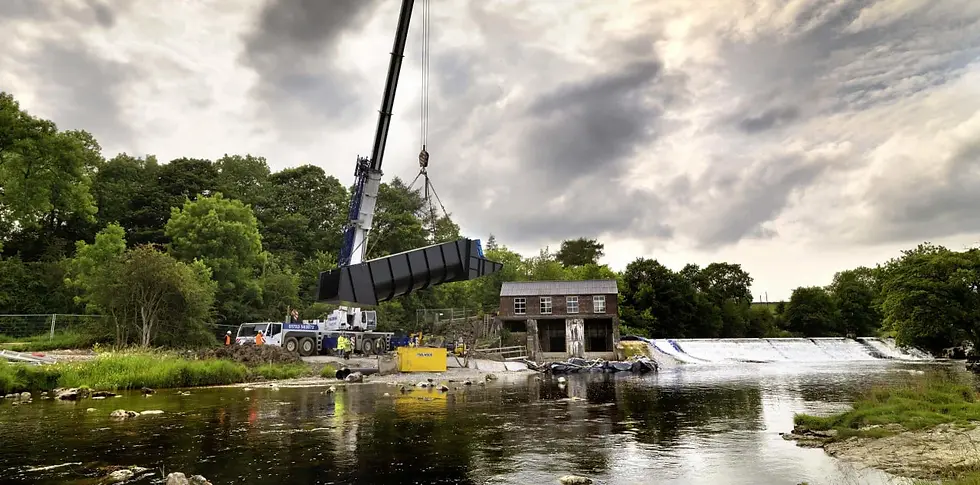

Linton Falls Hydro
Linton Falls Hydro
JN Bentley constructed a 120kW hydro turbine, on land owned by the business on a small weir at Linton Falls on the River Wharf, near Grassington in the Yorkshire Dales National Park. The original Linton Falls plant was built in 1909 bringing the first electricity to the village of Grassington, but was left out of commission since 1948, and has been protected as a Scheduled Monument. The construction project reinstated a hydro-electricity facility, incorporating two Archimedean screw turbines, to once again supply the Grassington area by feeding locally into the Grid.

Linton Falls Hydro

JN Bentley constructed a 120kW hydro turbine, on land owned by the business on a small weir at Linton Falls on the River Wharf, near Grassington in the Yorkshire Dales National Park. The original Linton Falls plant was built in 1909 bringing the first electricity to the village of Grassington, but was left out of commission since 1948, and has been protected as a Scheduled Monument. The construction project reinstated a hydro-electricity facility, incorporating two Archimedean screw turbines, to once again supply the Grassington area by feeding locally into the Grid.

Linton Falls Hydro

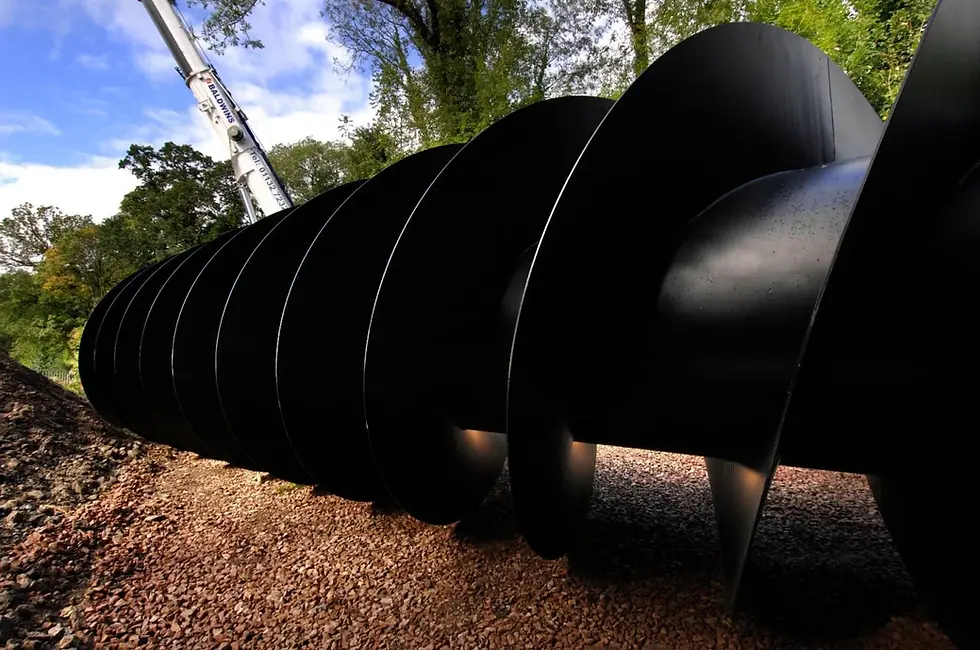

Low Wood Hydro
Low Wood Hydro
The project, located at the historical Low Wood Gunpowder Works within the scenic Lake District National Park, comprised of the refurbishment of the hydroelectricity plant. The works, which were on an English Heritage Scheduled Monument status site, required new intake sluice gates, the construction of an access bridge, the demolition of the existing power house and construction of a new power house, installation of rock armour and gabions to the tailrace and all preparatory work to allow the installation of the two new Archimedean screw turbines and associated equipment by Spaans Babcock.

Low Wood Hydro

The project, located at the historical Low Wood Gunpowder Works within the scenic Lake District National Park, comprised of the refurbishment of the hydroelectricity plant. The works, which were on an English Heritage Scheduled Monument status site, required new intake sluice gates, the construction of an access bridge, the demolition of the existing power house and construction of a new power house, installation of rock armour and gabions to the tailrace and all preparatory work to allow the installation of the two new Archimedean screw turbines and associated equipment by Spaans Babcock.

Low Wood Hydro

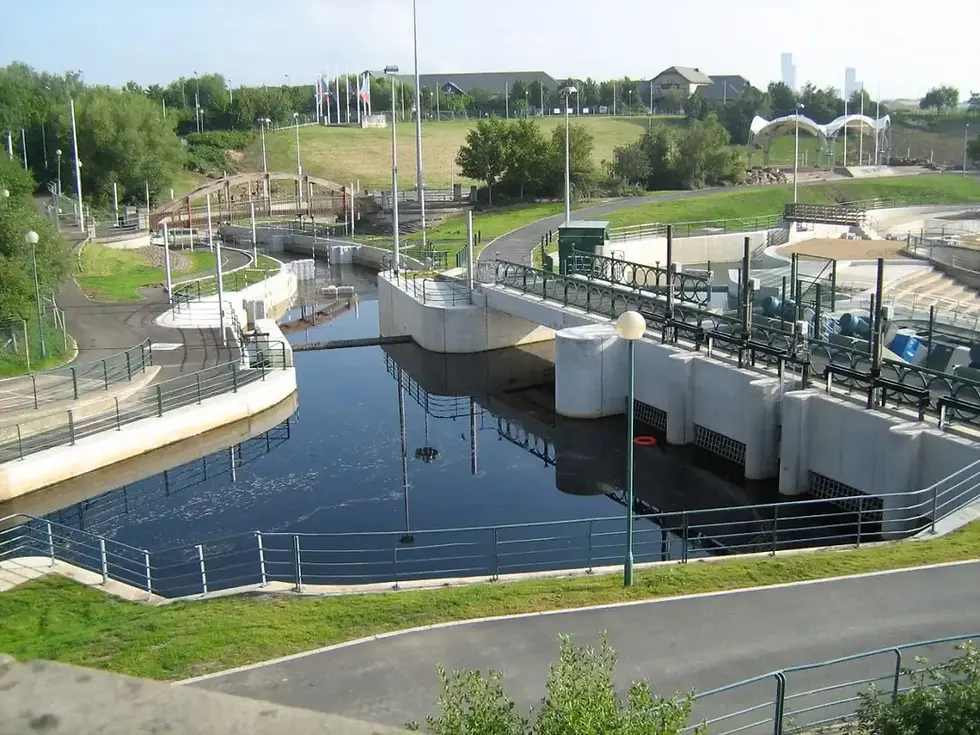

Tees Barrage
Tees Barrage
The course is located on the River Tees adjacent to the Tees Barrage. The project comprised a redevelopment of the course to create a world-class white water facility. The project at the time was the only installation in the world where Archimedean screws were used as both pumps and generators. The screws were particularly large, delivering a maximum flow rate of 14m3/s. Further elements included the design and construction of the new RC pumping station, construction of associated penstocks, stop logs and a fish pass; raising of concrete channel walls; excavation and construction of a new, steeper ‘short course’.

Tees Barrage

The course is located on the River Tees adjacent to the Tees Barrage. The project comprised a redevelopment of the course to create a world-class white water facility. The project at the time was the only installation in the world where Archimedean screws were used as both pumps and generators. The screws were particularly large, delivering a maximum flow rate of 14m3/s. Further elements included the design and construction of the new RC pumping station, construction of associated penstocks, stop logs and a fish pass; raising of concrete channel walls; excavation and construction of a new, steeper ‘short course’.

Tees Barrage

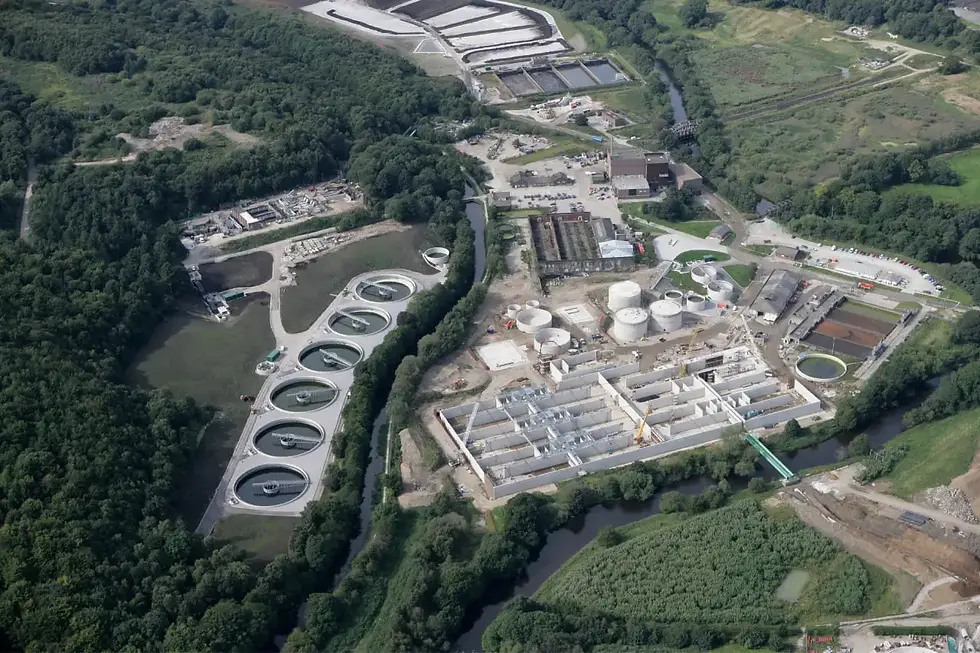

Esholt WwTW
Esholt WwTW
As part of an overall upgrade to the treatment works at Esholt, we designed and managed the installation of two hydrodynamic screws. The hydropower installation utilises the 10m head drop between the inlet works and the new primary tanks, with the power generated assisting in meeting the base load of the new activated sludge secondary treatment plant. We were responsible for construction of the inlet chamber, and plinths for the 2.6m diameter screws and oversaw the subcontracted hydropower and electrical works.

Esholt WwTW

As part of an overall upgrade to the treatment works at Esholt, we designed and managed the installation of two hydrodynamic screws. The hydropower installation utilises the 10m head drop between the inlet works and the new primary tanks, with the power generated assisting in meeting the base load of the new activated sludge secondary treatment plant. We were responsible for construction of the inlet chamber, and plinths for the 2.6m diameter screws and oversaw the subcontracted hydropower and electrical works.

Esholt WwTW

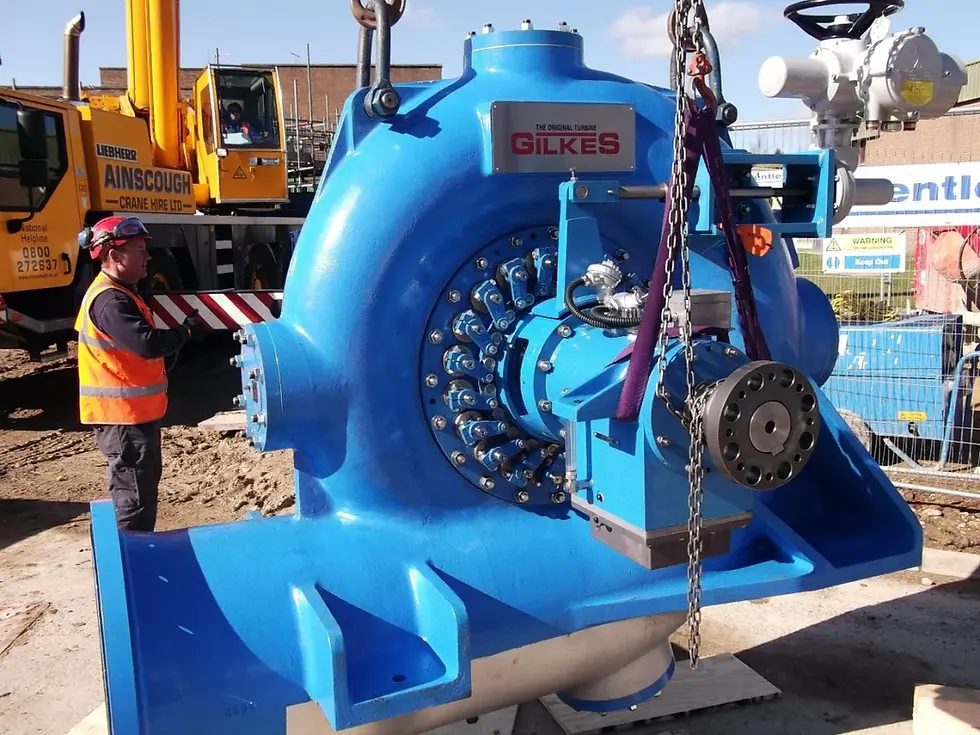

Eccup Hydro
Eccup Hydro
Working collaboratively with the client, we delivered a hydroelectric generation facility within Eccup Water Treatment Works (WTW), situated near Leeds, West Yorkshire. We also worked in partnership with suppliers to develop, install and commission a horizontally mounted Francis turbine with asynchronous generator in a new ‘hydro-turbine building’, upstream of Eccup WTW inlet works. The installation is fully integrated with the previously existing operation of the inlet works for ease of operation, to enable generation of up to 700MWh of electricity per annum.

Eccup Hydro

Working collaboratively with the client, we delivered a hydroelectric generation facility within Eccup Water Treatment Works (WTW), situated near Leeds, West Yorkshire. We also worked in partnership with suppliers to develop, install and commission a horizontally mounted Francis turbine with asynchronous generator in a new ‘hydro-turbine building’, upstream of Eccup WTW inlet works. The installation is fully integrated with the previously existing operation of the inlet works for ease of operation, to enable generation of up to 700MWh of electricity per annum.

Eccup Hydro

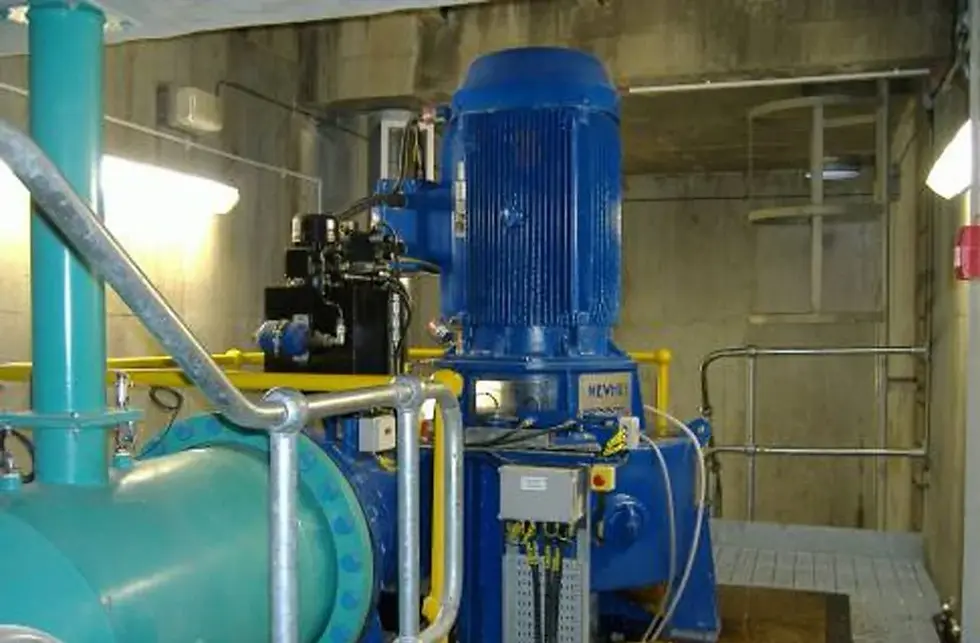

Grimwith
Grimwith
At Grmwith, water is released to river from the reservoir for abstraction downstream. Energy was being lost and offered an opportunity for energy recovery/generation from a turbine. The project comprised of the installation of a 250kW Francis Turbine within an existing chamber at Grimwith Reservoir, recovering energy from the water before it is discharged. The scope of work included the supply and installation of the turbine; modifications to the existing chamber; new 800mm diameter flowmeter to measure and record turbine flows; modification to pipework and valves; electrical installation and SCADA modifications.

Grimwith

At Grmwith, water is released to river from the reservoir for abstraction downstream. Energy was being lost and offered an opportunity for energy recovery/generation from a turbine. The project comprised of the installation of a 250kW Francis Turbine within an existing chamber at Grimwith Reservoir, recovering energy from the water before it is discharged. The scope of work included the supply and installation of the turbine; modifications to the existing chamber; new 800mm diameter flowmeter to measure and record turbine flows; modification to pipework and valves; electrical installation and SCADA modifications.

Grimwith

Awards
Repeat business is the recognition that we’re looking for - but it’s nice to pick up an award or two along the way.

Awards

Who we are
JN Bentley Ltd is part of the global management, engineering and development consultancy Mott MacDonald, offering our clients full feasibility, design and construction services throughout the UK.

Who we are

People
We integrate inclusion and belonging, professional and personal development, and health and wellbeing into our business culture.

People

Preserving resources
Our aim is to reduce water consumption, minimise our waste, and use energy efficiently.

Preserving resources

Quality, cost and efficiency
We must deliver quality solutions in a cost and efficient way. Doing so ensures we add value for our clients and continue to thrive as an organisation. How do we achieve this? Through our Quality, Cost & Efficiency Strategy.

Quality, cost and efficiency

Digital delivery
This is an overview of digital in JN Bentley, including our investment in digital delivery and our company digital transformation and how it is embedded in everything we do.

Digital delivery

Our team brings together the full expertise that we can offer in process, mechanical and electrical engineering and programme management, with support as required from the wider organisation.


JN Bentley is privileged to have worked with some prestigious hydropower clients such as Northumbrian Water, British Waterways and The Small Hydro Company, undertaking hydroturbine design, refurbishment and installations waste water screw generators, clean water generators and combined heat and power (CHP) systems.


We have also established some important supply chain relationships in the renewable energy market to help us deliver our hydropower schemes, including collaborative working agreements with the likes of Spaans Babcock and Zeropex.

Renewables

JN Bentley’s move into renewable energy, particularly the hydropower market, was a natural progression from the expertise gained over many years with our water sector clients and from other environmental projects.
